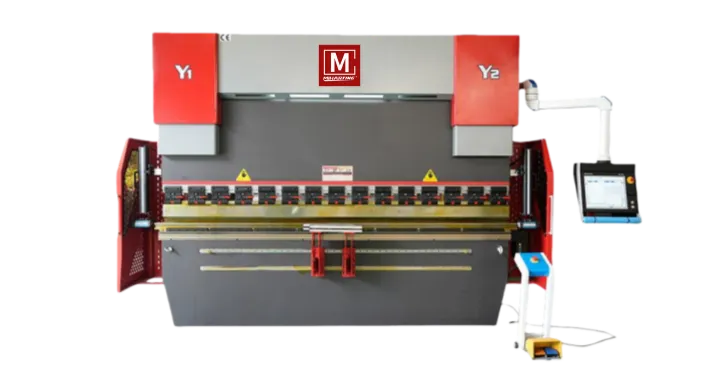

Precision DA53T Electro-hydraulic Sheet Metal Press Brake

The structure features a fully welded steel frame combined with an integrated assembly platform, offering excellent rigidity and high dimensional accuracy. The overall framework is developed using advanced 3D finite element analysis and optimization tools such as UG, ANSYS, and CAD, ensuring enhanced structural stability and reliable performance of the entire system.

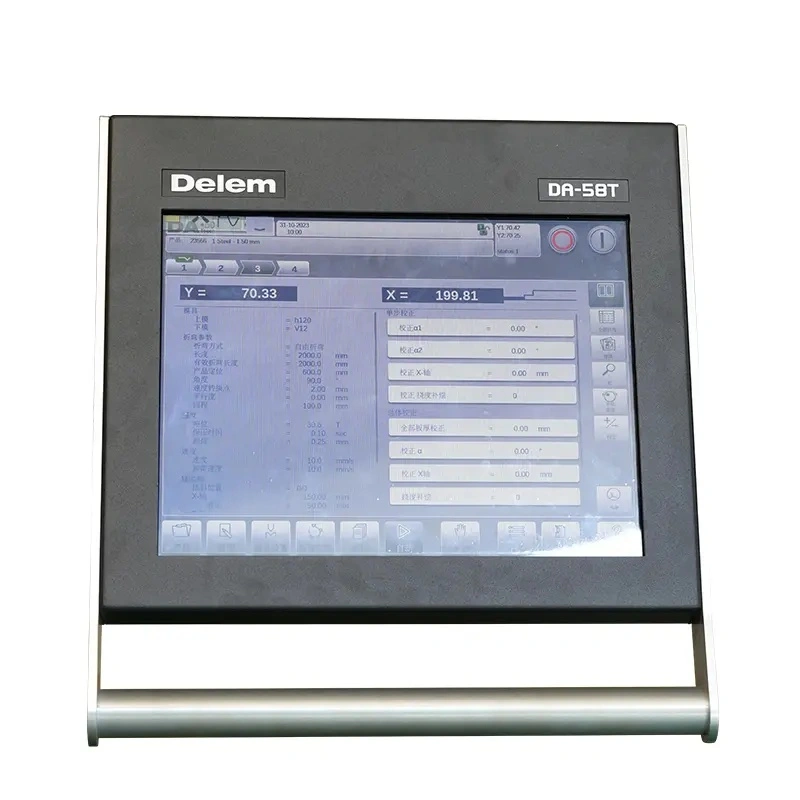

• User-friendly 2D graphical programming with touch-screen operation

• 15° inclined high-definition color TFT display

• Automatic calculation of bending sequences

• Intelligent crowning adjustment function

• Integrated control of servo drives and frequency converters

• Enhanced Y-axis motion control algorithms supporting both closed-loop and open-loop hydraulic systems

• USB connectivity and multiple peripheral interface options

• Profile-T offline programming software support

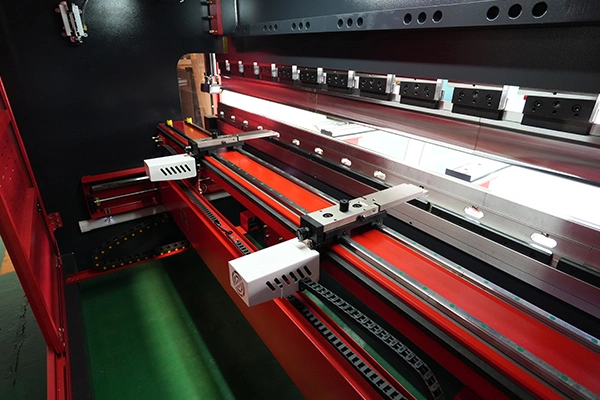

The hydraulic press brake is equipped with an adjustable backgauge system that provides enhanced flexibility through multiple degrees of freedom.

Key Advantages

• Coordinated multi-axis adjustments for superior bending precision

• Servo-driven, electrically controlled movements with linear guides and screw mechanisms for faster, automated operation

• Optimized structural design to ensure greater rigidity and stability

• Versatile application, capable of handling complex and irregular workpieces

• Simplified maintenance and longer service life of the equipment

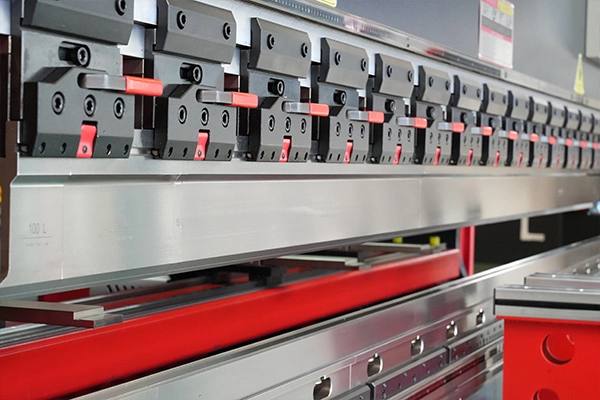

This system allows for rapid installation of the upper die, minimizing manual effort and boosting production efficiency. It offers high accuracy, simple operation, secure holding, and prevents loosening or accidental tool drops.

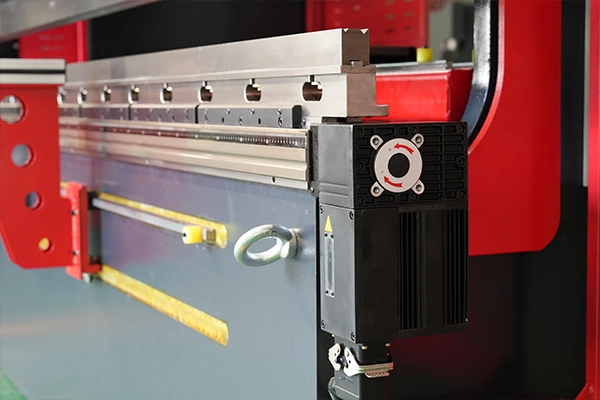

The NC system automatically determines and applies the required compensation, ensuring uniform bending angles along the entire workpiece.

Key Benefits

• Intelligent parametric adjustment for precise control

• Compatible with multiple stations for versatile operation

• Minimizes wear on critical components

• Reinforced structure designed to withstand impact

• Suitable for complex bending tasks and diverse processing requirements

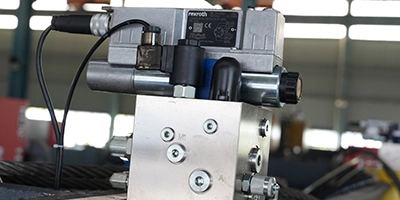

Rexroth hydraulic valves are commonly integrated into servo valve assemblies of CNC press brakes, delivering precise and consistent control over pressure and flow.

Customizable brackets—capable of sliding, extending, or lifting—are available for different setups, such as head plate removal or gap die replacement, ensuring secure and adaptable installation.

Key Advantages

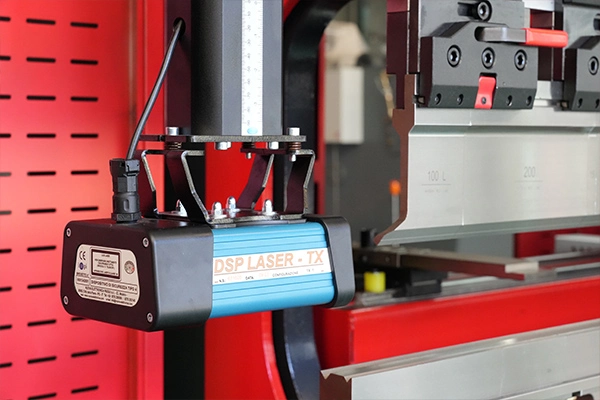

• High safety and fast response, compliant with CE standards; protection level reaches CAT IV (or Type 4/PLe)

• Minimal interference with production workflow

• Visible laser at 635 nm with strong resistance to ambient light disturbances

• Dual-layer protection combining beam detection and physical barriers to reduce the chance of missed triggers

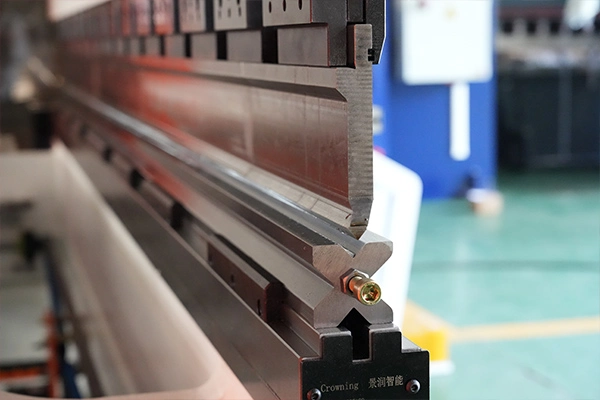

Forged and heat-treated, these tools provide long-lasting durability, excellent precision, straightness, and repeatability, ensuring optimal bending performance.

Key Advantages

• Manufactured from high-strength materials such as Cr12MoV and 42CrMo for superior accuracy and stability

• Automated adjustment enhances operational efficiency

• Robust, impact-resistant design prolongs service life

• Capable of processing stainless steel, aluminum alloys, and quenched steel plates, with thickness ranging from 0.5 mm to 20 mm

• Supports the production of complex workpieces

• Cost-effective design that minimizes operational risks
